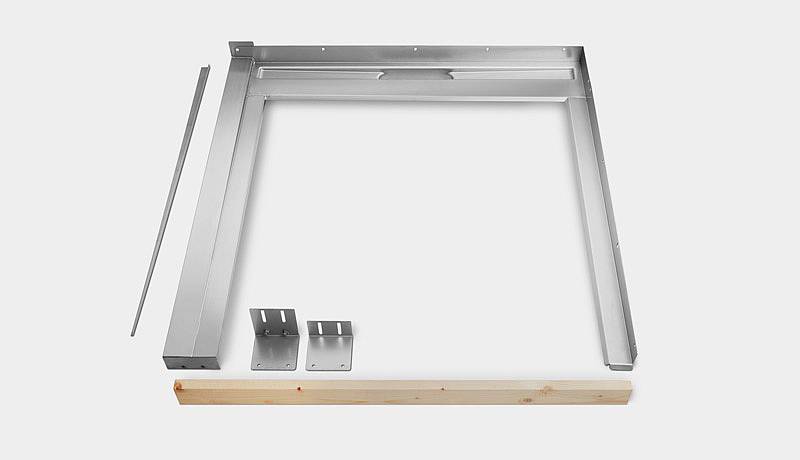

ShowerLine (for custom-made glass solutions) | Left-aligned | 5023


For left-aligned shower screen.

ShowerLine has a built-in fall, so the floor in the shower cubicle has the correct 2% slope towards the floor drain.

For added wetroom safety, the shower cubicle is framed by flanges on three sides. The solution allows you to have the glass wall prepared by a local supplier, who can tailor the glass wall to any height, a depth of 800-900 mm and glass thickness of 8-10 mm.

Combine with: outlet unit, frame and grating/panel.

5023.0809
5023.0809


Technické údaje

Č. položky

5023.0809

Číslo GTIN

5707692012605

Hmotnost bez obalu

7000 g

Hmotnost včetně obalu

5000 g

Materiály

Stainless steel (AISI 304)

Povrch

Pickled

Membrána

Liquid or sheet membrane

Konstrukce podlahy

Concrete/wood

Podlahová krytina

Tiles

Střed (C)

401 mm

Rámeček (R)

795 mm

Rozměry instalace (A)

857 mm

Spád

15 mm
